How to Change The Font Color through Maco Code?

sv.thiyagarajan · October 19, 2023, 2:01pm

Hi Friends,
How to Change the Font Color Using Macro Code ?
Here, Font Color is “Black”. I want to Change Font Color into “White”.
How to write Macro ?

Sub FontProperties
	Dim Doc As Object, oSheets As Object, Range As Object
	Doc = Thiscomponent : oSheets = Doc.Sheets(2)

	Range = oSheets.getCellRangeByName("A2:D2")
	With Range
			.CharWeight = com.sun.star.awt.FontWeight.BOLD
			.CharFontName = "Calibri"
			.CharFontNameAsian = "Calibri"
			.CharHeight = 14
			.Columns.OptimalWidth = True
			.CellBackColor = RGB(153, 204, 255)
			.HoriJustify = com.sun.star.table.CellHoriJustify.CENTER
			.VertJustify = com.sun.star.table.CellVertJustify.CENTER
	End With
End Sub

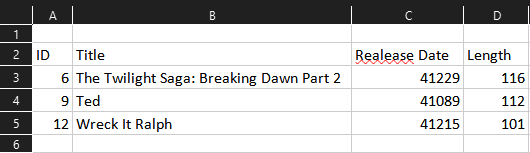

Screen Shot of Before_Macro

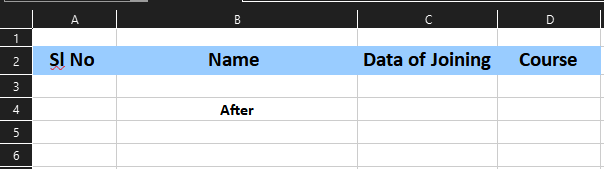

Screen Shot of After_Macro

vib · October 19, 2023, 2:50pm

I don’t know if it will help you, but, Check out Calc Direct Cell Font Effects for Python that is part of OooDev.

vib · October 19, 2023, 3:03pm

I suspect your need to set CharColor property.

See: from_obj() method of FontEffects class.

vib · October 19, 2023, 3:10pm

I think the properties for Cell background color are CellBackColor and IsCellBackgroundTransparent.

Ref:
Background color.py

~~https://github.com/Amourspirit/python_ooo_dev_tools/blob/main/ooodev/format/inner/common/props/cell_background_color_props.py~~

github.com

Amourspirit/python_ooo_dev_tools/blob/c6cccc6324b2b72f2c68dfe6fce8143ebd40d11c/ooodev/format/inner/direct/calc/background/color.py#L166



                if value >= 0:
                    self._set(self._props.color, value)
                    if self._props.is_transparent:
                        self._set(self._props.is_transparent, False)
                else:
                    self._set(self._props.color, -1)
                    if self._props.is_transparent:
                        self._set(self._props.is_transparent, True)


@property
            def _props(self) -> CellBackgroundColorProps:
                try:
                    return self._props_internal_attributes
                except AttributeError:
                    self._props_internal_attributes = CellBackgroundColorProps(
                        color="CellBackColor", is_transparent="IsCellBackgroundTransparent"
                    )
                return self._props_internal_attributes


@property
            def empty(self: _TColor) -> _TColor:  # type: ignore[misc]

sv.thiyagarajan · October 19, 2023, 3:26pm

Hi @vib , i want BASIC Macro, Which is in build in LibreOffice Calc …
I need Macro Code…

vib · October 19, 2023, 3:43pm

Simply put use CharColor

Sub FontProperties
	Dim Doc As Object, oSheets As Object, Range As Object
	Doc = Thiscomponent : oSheets = Doc.Sheets(0)

	Range = oSheets.getCellRangeByName("A2:D2")
	With Range
			.CharWeight = com.sun.star.awt.FontWeight.BOLD
			.CharFontName = "Calibri"
			.CharFontNameAsian = "Calibri"
			.CharHeight = 14
			.Columns.OptimalWidth = True
			.CharColor = RGB(153, 204, 255)
			.HoriJustify = com.sun.star.table.CellHoriJustify.CENTER
			.VertJustify = com.sun.star.table.CellVertJustify.CENTER
	End With
End Sub

sv.thiyagarajan · October 20, 2023, 7:09am

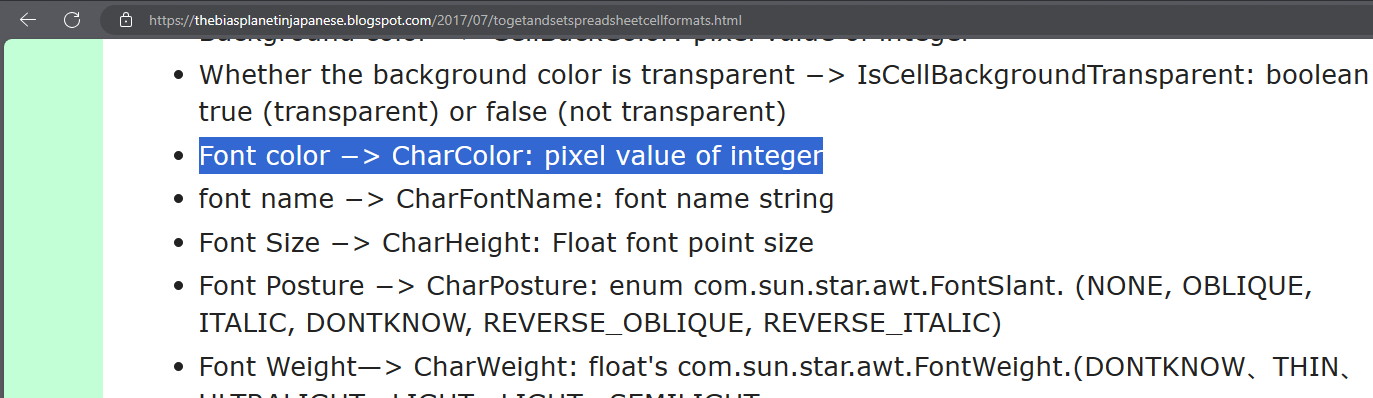

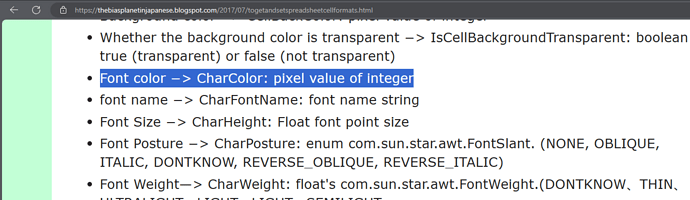

Hi @vib, thanks … Even me also got it From Japanese Website Just Translate From your browser.

Website

I just add additional Code for New Data, for learning purpose.
Formatting C3:C5 As Date Format

Here is the Code

Sub FontProperties
	Dim Doc As Object, oSheets As Object, Range As Object, oRange As Object
	Doc = Thiscomponent : oSheets = Doc.Sheets(2)

	Range = oSheets.getCellRangeByName("A2:D2")
	With Range
			.CharWeight = com.sun.star.awt.FontWeight.BOLD
			.CharFontName = "Calibri"
			.CharFontNameAsian = "Calibri"
			.CharHeight = 14
			.Columns.OptimalWidth = True
			.CellBackColor = RGB(153, 204, 255)
			.HoriJustify = com.sun.star.table.CellHoriJustify.CENTER
			.VertJustify = com.sun.star.table.CellVertJustify.CENTER
			.CharColor = RGB(255, 255, 255)  ' Font Color As White Color
	End With

	Dim NumberFormats As Object, NumberFormatString As String, NumberFormatId As Long
	Dim LocalSettings As New com.sun.star.lang.Locale

	oRange = oSheets.getCellRangeByName("C3:C5")
	With oRange
			LocalSettings.Country = "en"
			LocalSettings.Language = "IN"
			NumberFormats = Doc.NumberFormats
			NumberFormatString = "DD/MM/YYYY"			'What should I use to format as a date? Tried lots of things.

			NumberFormatId = NumberFormats.queryKey(NumberFormatString, LocalSettings, True)
			If NumberFormatId = -1 Then
				'Next line gives RunTime error '1' : RunTimException
			  NumberFormatId = NumberFormats.addNew(NumberFormatString, LocalSettings)
	        End If
	End With
	oRange.NumberFormat = NumberFormatId
End Sub

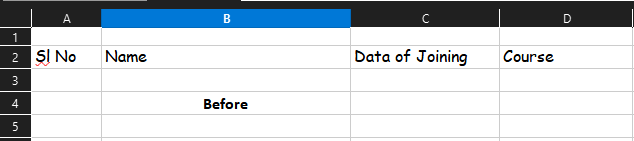

Screen Shot of Before Running Macro

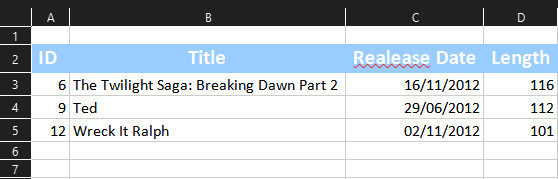

Screen Shot of After Running Macro

Thanks… @vib
