Let me clarify, as this is a very similar topic to many others on this excellent forum and I am a new member here
Many years ago I created an excel workbook to manage my accounts. I then created a column chart that showed three things: essential outgoings, non essential outgoings and total income. Nothing new here but bear with me…
The Essential and non-essential outgoings I stacked into a single column, each one overlaying the other with a different colour showing each value separately, the income column was right next to it in the same monthly space. So in effect I had two columns showing directly next to each other for any particular month, the leftmost column being double-stacked.
Now while there are many excellent posts showing how to achieve a similar chart using Libre Office, I have managed to manually re-create, as near as I can, the chart that I created all those years ago, and I haven’t used any graphical or visual effects.
I created a blank normal column chart, not using any cells to populate it, then I manually added a dummy column as a primary axis pointing to a simple couple of rows that contained month labels and zero-value entries. This is they key to getting this to work properly as it spaces the income column to the right of the stacked column. The zero values prevent it from appearing on the chart.
I then manually added an income column as a primary axis, then two columns for essential and non-essential outgoings as secondary axis’. I then played with spacing and overlap values until they overlaid the way I wanted them to with the income column sat perfectly to the right of them.

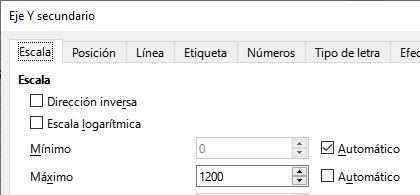

My problem is that as soon as I converted the outgoing columns into secondary axis, the value scale went waaay off, however hovering over the bars shows the correct values. This is where I am stuck

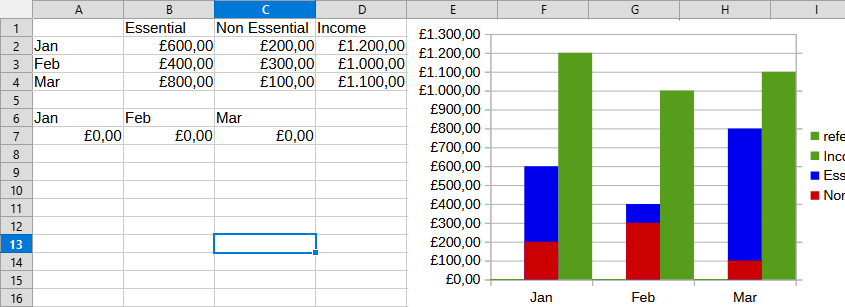

For clarification I have posted a test sheet with my work to date for you to play with. If there is anybody on these forums with far more knowledge than I have who can shed some light on what I am doing wrong here (and I am sure the fault is mine
) I would be eternally grateful for any advice that you can offer. I am so close to achieving this.
I apologize if this has already been covered, I have read many entries dealing with stacked column charts but none of them appear to replicate the chart that I had created all those years ago. This is the closest I have come to achieving this and maybe this method is new to some of you… maybe not.
Any help at this stage would be most welcome and I thank you in advance for any advice that you can put my way.
:edit:

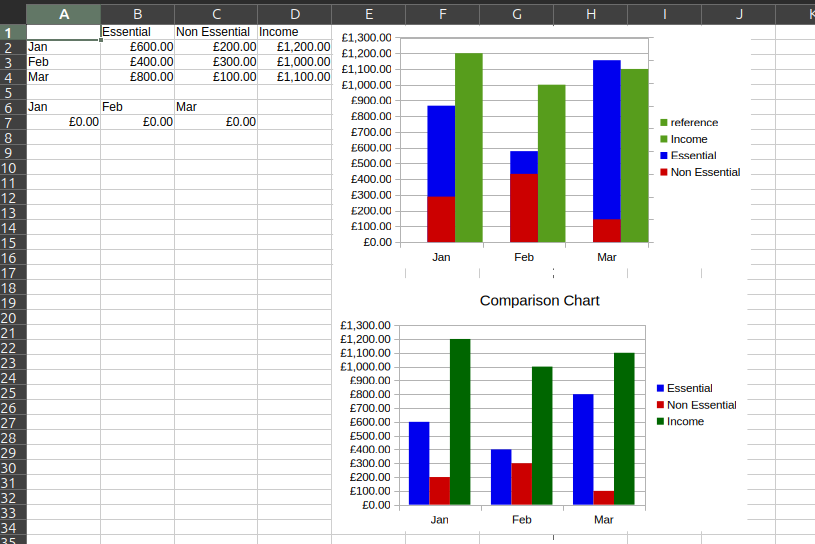

I have included a working example from a very old test sheet that works in Libre Office, I just can’t re-create it from scratch…
column chart experimental innacurate.ods (26.1 KB)
_Stacked cluster chart example.xls (16.5 KB)
… which is why I created a single chart and then tried to “trick” it into stacking like I did in the original Excel sheet.
