Integrate python program and LO component as grid

[flywire]

Is there a reasonable opportunity to replace the grid in a python program with a LO component? I use Adobe XFA Form fields and I want to automate the filling process using a spreadsheet. The only way I can currently fill documents is in Acrobat Reader and I use the fields directly but they can be converted to normal form fields as shown in the following example:

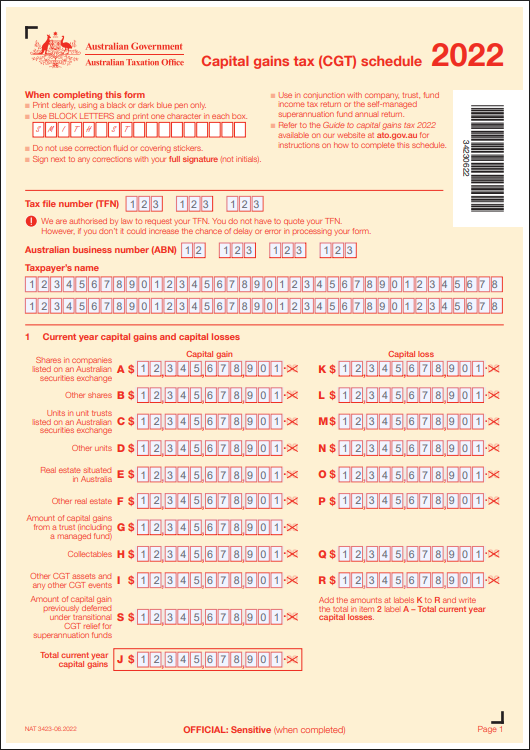

Code to add fields to pdf:

from PyPDFForm import PdfWrapper
from PyPDFForm import FormWrapper


new_form = PdfWrapper("Capital-gains-tax-schedule-2022.pdf").create_widget(
"text", "TFN_1", 1, 142, 605, width=41, height=17, max_length=3, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "TFN_2", 1, 198, 605, width=41, height=17, max_length=3, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "TFN_3", 1, 255, 605, width=41, height=17, max_length=3, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "ABN_1", 1, 204, 553, width=27, height=17, max_length=2, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "ABN_2", 1, 247, 553, width=41, height=17, max_length=3, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "ABN_3", 1, 303, 553, width=41, height=17, max_length=3, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "ABN_4", 1, 360, 553, width=41, height=17, max_length=3, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "Taxpayer", 1, 28, 514, width=537, height=17, max_length=38, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "Taxpayer2", 1, 28, 490, width=537, height=17, max_length=38, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1A", 1, 153, 420, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1K", 1, 380, 420, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1B", 1, 153, 390, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1L", 1, 380, 390, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1C", 1, 153, 360, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1M", 1, 380, 360, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1D", 1, 153, 330, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1N", 1, 380, 330, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1E", 1, 153, 300, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1O", 1, 380, 300, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1F", 1, 153, 271, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1P", 1, 380, 271, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1G", 1, 153, 241, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1H", 1, 153, 211, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1Q", 1, 380, 211, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "2I", 1, 153, 181, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1R", 1, 380, 181, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1S", 1, 153, 140, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "1J", 1, 153, 92, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "2A", 2, 380, 760, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "2B", 2, 380, 714, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "2C", 2, 380, 685, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "2D", 2, 380, 655, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "2E", 2, 380, 615, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "3A", 2, 380, 544, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "3B", 2, 380, 520, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "4A", 2, 380, 429, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "5A", 2, 380, 371, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "5B", 2, 380, 347, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "5C", 2, 380, 323, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "5D", 2, 380, 295, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "6A", 2, 380, 232, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"radio", "7A", 3, [312,446,554], [759,759,759], size=16, border_width=0).create_widget(
"text", "7B", 3, 351, 693, width=27, height=17, max_length=2, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "7C", 3, 351, 669, width=27, height=17, max_length=2, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "7D", 3, 360, 639, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "7E", 3, 360, 609, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "7EL", 3, 554, 609, width=13, height=17, max_length=1, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "7F", 3, 351, 540, width=55, height=17, max_length=4, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "7G", 3, 360, 510, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "7GL", 3, 554, 510, width=13, height=17, max_length=1, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "8A", 3, 362, 456, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "8AL", 3, 554, 456, width=13, height=17, max_length=1, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "8B", 3, 362, 432, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "8C", 3, 362, 408, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "8D", 3, 362, 384, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "8E", 3, 362, 360, width=167, height=17, max_length=11, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "Day", 4, 401, 553, width=27, height=17, max_length=2, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "Month", 4, 444, 553, width=27, height=17, max_length=2, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "Year", 4, 486, 553, width=55, height=17, max_length=4, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "Contact_Name", 4, 28, 519, width=537, height=17, max_length=38, comb=True, border_width=0, bg_color=(0, 0, 0, 0)).create_widget(
"text", "Contact_Number", 4, 28, 485, width=211, height=17, max_length=15, comb=True, border_width=0, bg_color=(0, 0, 0, 0)
)

with open("sample.pdf", "wb+") as output:
    output.write(new_form.read())


"""
filled = FormWrapper("sample.pdf").fill(
    {
        "Date": "22052025",
    },
)

with open("output.pdf", "wb+") as output:
    output.write(filled.read())

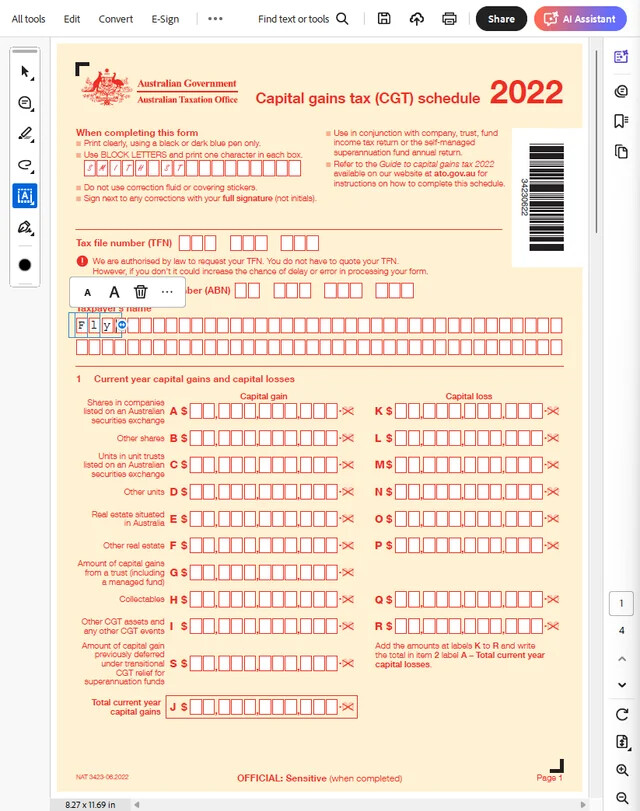

I’m not aware of any FOSS that can extract the form fields so I’ve developed a process to extract the box coordinates and display then on the pdf with a grid so fields can be identified and attributes added before generating the form fields creating a pdf updatable in any pdf reader.

Coding the form is a tedious error-prone manual effort. DataMap points are currently filtered before points.csv is written to load into v[isual]pdf.py. A right-mouse-click on the pdf brings up the [proof of concept] grid and selected record is highlighted. I understand all boxes are a similar size. Optionally enter the field length and number of boxes or select a template for predefined field characteristics like grouping and finessed spacing.

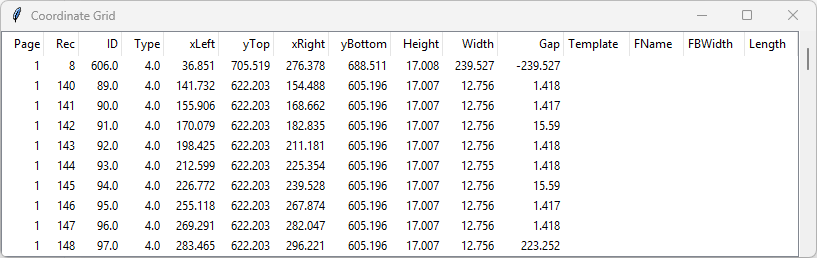

Would it be reasonable to replace the grid with a stripped down calc sheet or similar to filter and sort the data, and enter predefined template names, and other required data? If so, what is an outline of the process?

Useful Grid features:

• load and save
• improve atrocious data entry
• context menu to toggle the row/column coordinate sort
• enter Template value from a dropdown list
• enter an > to retain currently selected record allowing another record to be selected for field width calculation
• enter either number of boxes or field length to calculate the other
• launch process to generate updated pdf form with fields

This is running under Windows 11 and all current files and code are include in this and the next post.

---

Extract DataMap from pdf:

datamap.py

import os
import sys
import csv
import pikepdf
from openpyxl import Workbook
from openpyxl.styles import Font
from openpyxl.utils import get_column_letter


class Transform:
    """
    Handles coordinate transformation from PDF native coordinates to Acrobat-style coordinates.
    """
    def __init__(self, matrix):
        """
        Initialize the transformation matrix.

        Args:
            matrix (list): A list of six floats representing the transformation matrix.
        """
        self.a, self.b, self.c, self.d, self.e, self.f = matrix

    def to_acrobat(self, x, y):
        """
        Convert (x, y) coordinates using the transformation matrix to Acrobat coordinates.

        Args:
            x (float): The x-coordinate in PDF space.
            y (float): The y-coordinate in PDF space.

        Returns:
            tuple: Transformed (x, y) coordinates in Acrobat space.
        """
        x_new = x - self.e
        y_new = - (y + self.f)
        return (x_new, y_new)

class PDFDatamapExtractor:
    """
    Extracts mapping data from a PDF file's InDesign PieceInfo dictionary.
    """
    def __init__(self, pdf_path, target_key):
        """
        Initialize the extractor with a PDF file path and the target dictionary key.

        Args:
            pdf_path (str): Path to the PDF file.
            target_key (str): The key to extract from the InDesign dictionary.
        """
        self.pdf_path = pdf_path
        self.target_key = target_key

    def extract_pageitemuid_maps(self):
        """
        Extracts mapping data from all pages in the PDF.

        Returns:
            list: A list of rows, each representing extracted attributes for a page item.
        """
        rows = []
        with pikepdf.open(self.pdf_path) as pdf:
            all_pages = list(pdf.pages)
            for i, page in enumerate(all_pages):
                piece_info = page.get('/PieceInfo', None)
                if piece_info and '/InDesign' in piece_info:
                    indesign = piece_info['/InDesign']
                    if self.target_key in indesign:
                        for k, v in indesign[self.target_key].items():
                            item = int(k.lstrip('/'))
                            attributes = [float(x) for x in v]
                            rows.append([i + 1, item] + attributes)
        return rows

class DatamapProcessor:
    """
    Processes extracted PDF data: sorts, transforms coordinates, and adds computed columns.
    """
    def __init__(self, transform):
        """
        Initialize the processor with a coordinate transformation object.

        Args:
            transform (Transform): An instance of the Transform class.
        """
        self.transform = transform

    def process_rows(self, rows):
        """
        Sorts rows and computes Acrobat coordinates and dimensions for each row.

        Args:
            rows (list): List of extracted raw rows.

        Returns:
            list: Processed rows with additional coordinate and size columns.
        """
        all_rows_sorted = sorted(rows, key=lambda row: (row[0], row[1]))
        final_rows = []
        for row in all_rows_sorted:
            base_row = row + [''] * (15 - len(row)) if len(row) < 15 else row[:15]
            try:
                x1 = float(base_row[5])
                y1 = float(base_row[6])
                x2 = float(base_row[7])
                y2 = float(base_row[8])
                pdf_left, pdf_top = self.transform.to_acrobat(x1, y1)
                pdf_right, pdf_bottom = self.transform.to_acrobat(x2, y2)
                pdf_left = round(pdf_left, 3)
                pdf_top = round(pdf_top, 3)
                pdf_right = round(pdf_right, 3)
                pdf_bottom = round(pdf_bottom, 3)
                height = round(pdf_top - pdf_bottom, 3)
                width = round(pdf_right - pdf_left, 3)
                pdf_coords = [pdf_left, pdf_top, pdf_right, pdf_bottom, height, width]
            except (ValueError, IndexError, TypeError):
                pdf_coords = ['', '', '', '', '', '']
            final_rows.append(base_row + pdf_coords)
        return final_rows

    def sort_final_rows(self, final_rows):
        """
        Sorts processed rows by page, descending PdfBottom, and PdfLeft.

        Args:
            final_rows (list): List of processed rows.

        Returns:
            list: Sorted rows.
        """
        def sort_key(row):
            try:
                page = int(row[0])
            except (ValueError, TypeError):
                page = 0
            try:
                pdf_bottom = float(row[18])
            except (ValueError, IndexError, TypeError):
                pdf_bottom = float('-inf')
            try:
                pdf_left = float(row[15])
            except (ValueError, IndexError, TypeError):
                pdf_left = float('inf')
            return (page, -pdf_bottom, pdf_left)
        return sorted(final_rows, key=sort_key)

    def add_gap_column(self, sorted_rows):
        """
        Adds a column representing the gap between adjacent items on the same page.

        Args:
            sorted_rows (list): List of sorted rows.

        Returns:
            list: Rows with an additional gap column.
        """
        rows_with_gap = []
        for idx, row in enumerate(sorted_rows):
            if idx + 1 < len(sorted_rows):
                curr_page = row[0]
                next_row = sorted_rows[idx + 1]
                next_page = next_row[0]
                try:
                    curr_pdf_right = float(row[17])
                    next_pdf_left = float(next_row[15])
                except (ValueError, IndexError, TypeError):
                    gap = ''
                else:
                    if curr_page == next_page:
                        gap = round(next_pdf_left - curr_pdf_right, 3)
                    else:
                        gap = ''
            else:
                gap = ''
            rows_with_gap.append(row + [gap])
        return rows_with_gap

class SpreadsheetWriter:
    """
    Writes processed data rows to an Excel spreadsheet with headers and formatting.
    """
    def __init__(self, header, extra_columns):
        """
        Initialize the writer with header and extra column names.

        Args:
            header (list): List of main column headers.
            extra_columns (list): List of additional columns to append.
        """
        self.header = header
        self.extra_columns = extra_columns

    def write(self, rows, output_path):
        """
        Write the data rows to an Excel file, appending extra columns and formatting headers.

        Args:
            rows (list): List of rows to write.
            output_path (str): Output Excel file path.
        """
        wb = Workbook()
        ws = wb.active
        ws.append(self.header)
        for row in rows:
            ws.append(row)
        last_col = ws.max_column
        for idx, col_name in enumerate(self.extra_columns, start=last_col + 1):
            ws.cell(row=1, column=idx, value=col_name)
        for row in ws.iter_rows(min_row=2, max_row=ws.max_row, min_col=last_col + 1, max_col=last_col + len(self.extra_columns)):
            for cell in row:
                cell.value = ''
        for cell in ws[1]:
            cell.font = Font(bold=True)
        ws.freeze_panes = 'C2'
        max_col_letter = get_column_letter(ws.max_column)
        max_row = ws.max_row
        ws.auto_filter.ref = f"A1:{max_col_letter}{max_row}"
        wb.save(output_path)

class PDFDataMapController:
    """
    Orchestrates the extraction, processing, and writing of PDF data map information.
    Also exports selected columns to CSV.
    """
    def __init__(self, pdf_path):
        """
        Initialize the controller with the PDF path and configuration.

        Args:
            pdf_path (str): Path to the input PDF file.
        """
        self.pdf_path = pdf_path
        self.header = [
            'Page', 'Rec', 'f3', 'ID', 'Type', 'x1', 'y1', 'x2', 'y2',
            'r', 'g', 'b', 'a', 'f14', 'f15',
            'xLeft', 'yTop', 'xRight', 'yBottom',
            'Height', 'Width', 'Gap'
        ]
        self.extra_columns = [
            'Template', 'FName', 'FBWidth', 'Length', 'widget_type', 'name',
            'page_number', 'x', 'y', 'width', 'height', 'max_length', 'comb', 'etc'
        ]
        self.csv_columns = [
            'Page', 'Rec', 'ID', 'Type', 'xLeft', 'yTop', 'xRight', 'yBottom',
            'Height', 'Width','Gap', 'Template', 'FName', 'FBWidth', 'Length'
        ]
        self.matrix = [1.0, 0.0, 0.0, 1.0, -297.638, -420.945]
        self.transform = Transform(self.matrix)
        self.target_key = '/PageItemUIDToLocationDataMap'

    def run(self):
        """
        Run the full data extraction, processing, Excel writing, and CSV export workflow.
        """
        extractor = PDFDatamapExtractor(self.pdf_path, self.target_key)
        raw_rows = extractor.extract_pageitemuid_maps()
        processor = DatamapProcessor(self.transform)
        processed_rows = processor.process_rows(raw_rows)
        sorted_rows = processor.sort_final_rows(processed_rows)
        rows_with_gap = processor.add_gap_column(sorted_rows)
        base, _ = os.path.splitext(self.pdf_path)
        spreadsheet_name = f"{base}_DataMap.xlsx"
        writer = SpreadsheetWriter(self.header, self.extra_columns)
        writer.write(rows_with_gap, spreadsheet_name)
        print(f"Saved: {spreadsheet_name}.")

        # --- FILTER: Only rows where Type == 4.0 and round(Height) == 17 ---
        filtered_rows = [
            row for row in rows_with_gap
            if len(row) > 19
            and str(row[4]).strip() == '4.0'
            and row[19] not in ('', None)
            and round(float(row[19])) == 17
        ]
        self.export_csv(filtered_rows, base)

    def export_csv(self, rows, base):
        """
        Export selected columns to a CSV file.

        Args:
            rows (list): List of all processed rows (with gap and extra columns).
            base (str): Base filename (without extension).
        """
        # Combine header and extra_columns for full column list
        full_columns = self.header + self.extra_columns
        col_indices = []
        for col in self.csv_columns:
            if col in full_columns:
                col_indices.append(full_columns.index(col))
            else:
                # If column not found, append -1 to indicate missing
                col_indices.append(-1)
#        csv_filename = f"{base}_DataMap.csv"
        csv_filename = f"points.csv"
        with open(csv_filename, 'w', newline='', encoding='utf-8') as csvfile:
            writer = csv.writer(csvfile)
            writer.writerow(self.csv_columns)
            for row in rows:
                csv_row = []
                for idx in col_indices:
                    if idx >= 0 and idx < len(row):
                        csv_row.append(row[idx])
                    else:
                        csv_row.append('')
                writer.writerow(csv_row)
        print(f"Saved: {csv_filename}.")


if __name__ == "__main__":
    """
    Entry point for running the PDF data map extraction and export process.
    """
    if len(sys.argv) < 2:
        print("Usage: python script.py <inputfile.pdf>")
        sys.exit(1)
    pdf_path = sys.argv[1]
    if not os.path.isfile(pdf_path):
        print(f"Error: file '{pdf_path}' not found.")
        sys.exit(1)
    controller = PDFDataMapController(pdf_path)
    controller.run()

[flywire]

vpdf.py

import sys
import csv
import pymupdf  # PyMuPDF
import tkinter as tk
from tkinter import filedialog, messagebox, ttk, font
from PIL import Image, ImageTk

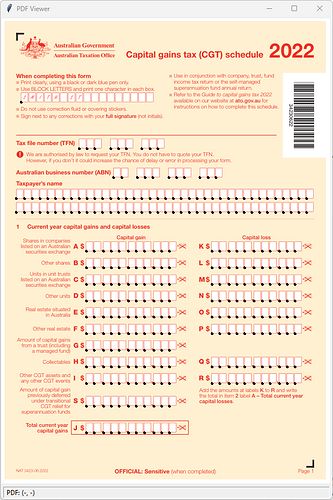

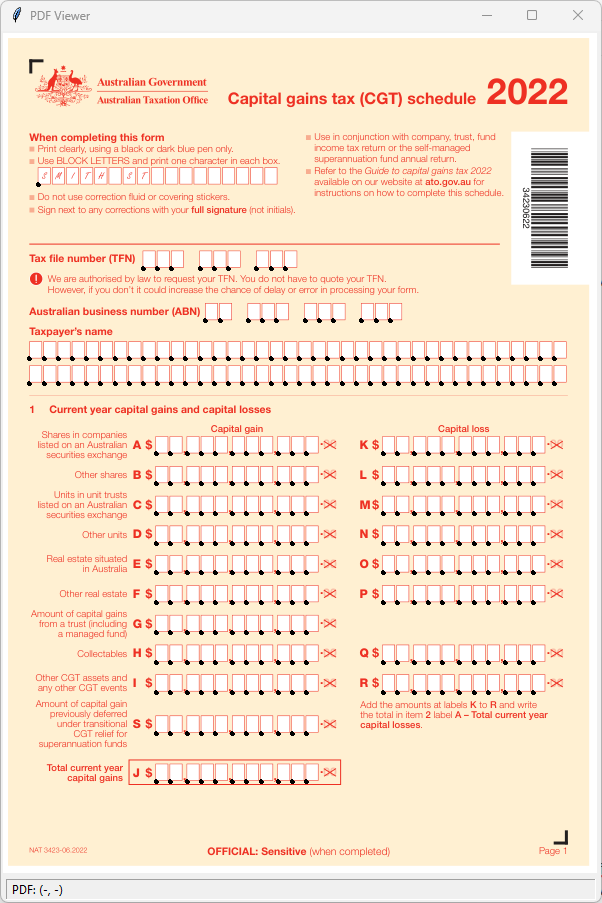

class PDFViewer:
    """
    PDF viewer with grid overlay and coordinate marker.
    Clicking near the grid point to select that point in the grid.
    Only FName, FBWidth, Length, and Template are editable in the grid.
    """

    def __init__(self, root):
        self.root = root
        self.root.title("PDF Viewer")

        self.current_marker_ids = None
        self.grid_window = None
        self.grid_point_ids = []
        self.tree = None

        self.grid_point_radius = 2  # radius for grid overlay points
        self.grid_point_select_radius = self.grid_point_radius * 2  # selection threshold

        self.grid_data, self.csv_columns = self.load_grid_data_from_csv('points.csv')

        self.pdf_path = self.select_pdf_file()
        if not self.pdf_path:
            self.root.destroy()
            return

        try:
            self.document = pymupdf.open(self.pdf_path)
        except Exception as e:
            messagebox.showerror("Error", f"Error loading PDF: {e}")
            self.root.destroy()
            return

        self.total_pages = self.document.page_count
        self.current_page = 0

        self._setup_canvas()
        self._setup_status()
        self.load_page(self.current_page)

        self.root.bind('<Page_Down>', self.next_page)
        self.root.bind('<Page_Up>', self.prev_page)

    def load_grid_data_from_csv(self, filename):
        grid_data = []
        columns = []
        try:
            with open(filename, newline='', encoding='utf-8') as csvfile:
                reader = csv.DictReader(csvfile)
                columns = reader.fieldnames
                for row in reader:
                    grid_data.append(row)
        except Exception as e:
            messagebox.showerror("Error", f"Error loading grid data from '{filename}': {e}")
            self.root.destroy()
            sys.exit(1)
        if not grid_data or not columns:
            messagebox.showerror("Error", f"No valid grid data found in '{filename}'.")
            self.root.destroy()
            sys.exit(1)
        return grid_data, columns

    def select_pdf_file(self):
        if len(sys.argv) > 1:
            return sys.argv[1]
        file_path = filedialog.askopenfilename(
            title="Select PDF file",
            filetypes=[("PDF files", "*.pdf"), ("All files", "*.*")]
        )
        return file_path

    def _setup_canvas(self):
        self.canvas = tk.Canvas(self.root)
        self.canvas.pack(expand=True, fill=tk.BOTH)
        self.canvas_image = None

        self.canvas.bind("<Button-1>", self.on_click)
        self.canvas.bind("<Motion>", self.on_mouse_move)
        self.canvas.bind("<Button-3>", self.toggle_grid_window)

    def _setup_status(self):
        status_frame = tk.Frame(self.root)
        status_frame.pack(side=tk.BOTTOM, fill=tk.X, padx=5, pady=2)
        self.coord_display = tk.Label(
            status_frame, text="PDF: (-, -)",
            anchor=tk.W, relief=tk.SUNKEN, bd=1, padx=5, pady=2
        )
        self.coord_display.pack(fill=tk.X)

    def load_page(self, page_num):
        self.current_page = page_num
        page = self.document.load_page(page_num)
        pix = page.get_pixmap()
        img = Image.frombytes("RGB", [pix.width, pix.height], pix.samples)
        self.tk_img = ImageTk.PhotoImage(img)

        self.canvas.config(width=pix.width, height=pix.height)
        if self.canvas_image is None:
            self.canvas_image = self.canvas.create_image(0, 0, anchor=tk.NW, image=self.tk_img)
        else:
            self.canvas.itemconfig(self.canvas_image, image=self.tk_img)

        self.canvas_width, self.canvas_height = pix.width, pix.height
        self.page_width, self.page_height = page.rect.width, page.rect.height

        self.coord_display.config(text="PDF: (-, -)")
        self.clear_marker()
        self.draw_all_grid_points()
        self.refresh_grid_window()

    def prev_page(self, event=None):
        if self.current_page > 0:
            self.load_page(self.current_page - 1)

    def next_page(self, event=None):
        if self.current_page < self.total_pages - 1:
            self.load_page(self.current_page + 1)

    def _map_canvas_to_pdf(self, x, y):
        pdf_x = (x / self.canvas_width) * self.page_width
        pdf_y = ((self.canvas_height - y) / self.canvas_height) * self.page_height
        return pdf_x, pdf_y

    def _map_pdf_to_canvas(self, pdf_x, pdf_y):
        canvas_x = (pdf_x / self.page_width) * self.canvas_width
        canvas_y = self.canvas_height - ((pdf_y / self.page_height) * self.canvas_height)
        return canvas_x, canvas_y

    def on_click(self, event):
        x, y = event.x, event.y
        if 0 <= x <= self.canvas_width and 0 <= y <= self.canvas_height:
            pdf_x, pdf_y = self._map_canvas_to_pdf(x, y)
            self.coord_display.config(
                text=f"PDF: ({pdf_x:.2f}, {pdf_y:.2f})"
            )
            # --- Select grid point if click is within twice the point radius ---
            selected_idx = self.find_nearest_grid_point(x, y)
            if selected_idx is not None:
                self.select_grid_point(selected_idx)
        else:
            self.coord_display.config(text="PDF: (-, -)")

    def find_nearest_grid_point(self, x, y):
        """
        Returns the index of the nearest grid point within selection radius, else None.
        Only considers points for the current page.
        """
        min_dist_sq = (self.grid_point_select_radius) ** 2
        nearest_idx = None
        current_page_1based = self.current_page + 1
        for idx, row in enumerate(self.grid_data):
            try:
                if int(row.get("Page", 0)) != current_page_1based:
                    continue
                pdf_x = float(row.get("xLeft", 0))
                pdf_y = float(row.get("yBottom", 0))
                cx, cy = self._map_pdf_to_canvas(pdf_x, pdf_y)
                dist_sq = (x - cx) ** 2 + (y - cy) ** 2
                if dist_sq <= min_dist_sq:
                    min_dist_sq = dist_sq
                    nearest_idx = idx
            except Exception:
                continue
        return nearest_idx

    def select_grid_point(self, idx):
        """
        Select the grid point at the given index, draw marker, and select row in grid window if open.
        """
        row = self.grid_data[idx]
        try:
            pdf_x = float(row.get("xLeft", 0))
            pdf_y = float(row.get("yBottom", 0))
            cx, cy = self._map_pdf_to_canvas(pdf_x, pdf_y)
            self.draw_marker(cx, cy, color="blue")
            # Select in grid window if open and visible
            if self.grid_window and self.tree:
                # Find the visible row index for the current page
                current_page_1based = self.current_page + 1
                visible_rows = [
                    (i, r) for i, r in enumerate(self.grid_data)
                    if int(r.get("Page", 0)) == current_page_1based
                ]
                for tree_idx, (data_idx, _) in enumerate(visible_rows):
                    if data_idx == idx:
                        iid = self.tree.get_children()[tree_idx]
                        self.tree.selection_set(iid)
                        self.tree.see(iid)
                        break
        except Exception:
            pass

    def on_mouse_move(self, event):
        x, y = event.x, event.y
        if 0 <= x <= self.canvas_width and 0 <= y <= self.canvas_height:
            pdf_x, pdf_y = self._map_canvas_to_pdf(x, y)
            self.coord_display.config(
                text=f"PDF: ({pdf_x:.2f}, {pdf_y:.2f})"
            )
        else:
            self.coord_display.config(text="PDF: (-, -)")

    def show_pdf_coordinate(self, pdf_x, pdf_y):
        try:
            canvas_x, canvas_y = self._map_pdf_to_canvas(pdf_x, pdf_y)
            self.draw_marker(canvas_x, canvas_y, color="blue")
        except Exception:
            messagebox.showinfo("Invalid Input", "Please enter valid PDF coordinates.")

    def clear_marker(self):
        if self.current_marker_ids:
            for mid in self.current_marker_ids:
                self.canvas.delete(mid)
        self.current_marker_ids = None

    def draw_marker(self, x, y, size=4, gap=1, color="blue"):
        self.clear_marker()
        l1 = self.canvas.create_line(x - size, y - size, x - gap, y - gap, fill=color, width=2)
        l2 = self.canvas.create_line(x + gap, y + gap, x + size, y + size, fill=color, width=2)
        l3 = self.canvas.create_line(x - size, y + size, x - gap, y + gap, fill=color, width=2)
        l4 = self.canvas.create_line(x + gap, y - gap, x + size, y - size, fill=color, width=2)
        self.current_marker_ids = [l1, l2, l3, l4]

    def draw_all_grid_points(self):
        for oid in self.grid_point_ids:
            self.canvas.delete(oid)
        self.grid_point_ids = []
        current_page_1based = self.current_page + 1
        for row in self.grid_data:
            try:
                if int(row.get("Page", 0)) == current_page_1based:
                    pdf_x = float(row.get("xLeft", 0))
                    pdf_y = float(row.get("yBottom", 0))
                    cx, cy = self._map_pdf_to_canvas(pdf_x, pdf_y)
                    oid = self.canvas.create_oval(
                        cx-self.grid_point_radius, cy-self.grid_point_radius,
                        cx+self.grid_point_radius, cy+self.grid_point_radius,
                        outline="black", fill="black"
                    )
                    self.grid_point_ids.append(oid)
            except Exception:
                continue

    def toggle_grid_window(self, event=None):
        if self.grid_window and tk.Toplevel.winfo_exists(self.grid_window):
            self.close_grid_window()
        else:
            self.open_grid_window()

    def close_grid_window(self):
        self.clear_marker()
        if self.grid_window:
            self.grid_window.destroy()
            self.grid_window = None
        self.tree = None

    def open_grid_window(self):
        if self.grid_window and tk.Toplevel.winfo_exists(self.grid_window):
            self.grid_window.lift()
            return

        self.grid_window = tk.Toplevel(self.root)
        self.grid_window.title("Coordinate Grid")

        def on_close():
            self.clear_marker()
            self.grid_window.destroy()
            self.grid_window = None
            self.tree = None
        self.grid_window.protocol("WM_DELETE_WINDOW", on_close)

        self.tree = ttk.Treeview(self.grid_window, columns=self.csv_columns, show="headings", height=10)
        col_types = self.detect_column_types()
        for col in self.csv_columns:
            anchor = tk.E if col_types.get(col, "text") == "number" else tk.W
            self.tree.heading(col, text=col, anchor=anchor)
            self.tree.column(col, anchor=anchor, width=80, stretch=True)
        self.tree.pack(side=tk.LEFT, fill=tk.BOTH, expand=True)
        scrollbar = ttk.Scrollbar(self.grid_window, orient=tk.VERTICAL, command=self.tree.yview)
        self.tree.configure(yscroll=scrollbar.set)
        scrollbar.pack(side=tk.RIGHT, fill=tk.Y)

        self.refresh_grid_window()
        self.auto_resize_columns()

        self.tree.bind("<<TreeviewSelect>>", self.on_grid_select)
        self.tree.bind("<Double-1>", self.on_grid_double_click)

        self.draw_all_grid_points()

    def detect_column_types(self):
        types = {}
        for col in self.csv_columns:
            for row in self.grid_data:
                val = row.get(col, "")
                if val != "":
                    try:
                        float(val)
                        types[col] = "number"
                    except Exception:
                        types[col] = "text"
                    break
            else:
                types[col] = "text"
        return types

    def auto_resize_columns(self):
        if not self.tree:
            return
        fnt = font.nametofont("TkDefaultFont")
        for col in self.csv_columns:
            maxw = fnt.measure(col)
            for item in self.tree.get_children():
                val = str(self.tree.set(item, col))
                maxw = max(maxw, fnt.measure(val))
            self.tree.column(col, width=maxw + 16)

    def refresh_grid_window(self):
        if self.tree:
            for row in self.tree.get_children():
                self.tree.delete(row)
            current_page_1based = self.current_page + 1
            for row in self.grid_data:
                try:
                    if int(row.get("Page", 0)) == current_page_1based:
                        values = [row.get(col, "") for col in self.csv_columns]
                        self.tree.insert("", tk.END, values=values)
                except Exception:
                    continue
            self.auto_resize_columns()

    def on_grid_select(self, event):
        selected = self.tree.selection()
        if selected:
            item = self.tree.item(selected[0])
            values = item["values"]
            try:
                pdf_left_idx = self.csv_columns.index("xLeft")
                pdf_bottom_idx = self.csv_columns.index("yBottom")
                pdf_x = float(values[pdf_left_idx])
                pdf_y = float(values[pdf_bottom_idx])
                canvas_x, canvas_y = self._map_pdf_to_canvas(pdf_x, pdf_y)
                self.draw_marker(canvas_x, canvas_y, color="blue")
            except Exception:
                pass

    def on_grid_double_click(self, event):
        """Allow editing only of FName, FBWidth, Length, and Template columns on double-click."""
        editable_columns = {"FName", "FBWidth", "Length", "Template"}
        region = self.tree.identify("region", event.x, event.y)
        if region == "cell":
            rowid = self.tree.identify_row(event.y)
            col = self.tree.identify_column(event.x)
            col_index = int(col.replace("#", "")) - 1
            if col_index < 0:
                return
            col_name = self.csv_columns[col_index]
            if col_name not in editable_columns:
                return  # Only allow editing for specified columns
            x, y, width, height = self.tree.bbox(rowid, col)
            value = self.tree.set(rowid, col)
            entry = tk.Entry(self.tree)
            entry.place(x=x, y=y, width=width, height=height)
            entry.insert(0, value)
            entry.focus()

            def on_entry_confirm(event):
                new_value = entry.get()
                entry.destroy()
                values = list(self.tree.item(rowid, "values"))
                values[col_index] = new_value
                self.tree.item(rowid, values=values)
                # --- Update the in-memory grid_data ---
                current_page_1based = self.current_page + 1
                visible_rows = [
                    (i, row) for i, row in enumerate(self.grid_data)
                    if int(row.get("Page", 0)) == current_page_1based
                ]
                row_idx = self.tree.index(rowid)
                data_idx, data_row = visible_rows[row_idx]
                self.grid_data[data_idx][self.csv_columns[col_index]] = new_value
                # --- End update ---
                if self.tree.selection() and self.tree.selection()[0] == rowid:
                    try:
                        pdf_left_idx = self.csv_columns.index("xLeft")
                        pdf_bottom_idx = self.csv_columns.index("yBottom")
                        pdf_x = float(values[pdf_left_idx])
                        pdf_y = float(values[pdf_bottom_idx])
                        canvas_x, canvas_y = self._map_pdf_to_canvas(pdf_x, pdf_y)
                        self.draw_marker(canvas_x, canvas_y, color="blue")
                        self.draw_all_grid_points()
                        self.refresh_grid_window()
                    except Exception:
                        pass

            entry.bind("<Return>", on_entry_confirm)
            entry.bind("<FocusOut>", lambda e: entry.destroy())

if __name__ == "__main__":
    root = tk.Tk()
    viewer = PDFViewer(root)
    root.mainloop()

[vib]

I am not clear on the use cases here.
Why not add form fields the pdf and then access with PdfReader or something?

https://g.co/gemini/share/61d9588a71c1

[flywire]

Just to clarify the use case. The Adobe XFA Form fields work in Acrobat Reader (and Acrobat) but they don’t allow automated filling or field access by most pdf readers. The general process is to enter numbers which become part of deeply nested calculations, and the provided form is a simple example. Also, most of the fields are multipart fields so they must be entered part at a time, perhaps with a tab between the parts. This is not spreadsheet type entry, it is not even writer type entry but more text box type entry for each part of the field. One small change means the form needs to be recalculated and much of it re-entered.
.
The objective is to enter the numbers in a spreadsheet, calculate values, and merge them into the pdf. (A sample for one field at the end of the first block of code has been commented out.)
.
I prepared the data for this form manually in a spreadsheet by working through the pdf datamaps but the methodology was too complex to transfer to forms with 10’s of pages.
.

@vib

Why not add form fields the pdf and then access with PdfReader or something?

.
I apologise if I haven’t communicated that is exactly the process I’m trying implement. Most of it is data extraction, calculation and output. The manual process involves using the gui to identify points and a linked grid to provide attribute data.
.
I’ve played around with the prototype a bit more, grid records linked to pdf points with the ability to toggle between row major order and column major order works really well (eg, select first box in a column on pdf then toggle to column major order from context menu and just fill in all fields sequentially).
.
The issue is the tkinter grid widget is absolute crap, I just can’t get it to work, especially with a dropdown combo box for template. A web search shows others have a similar view. A smart grid connected to the pdf points is the key to this application and I see a spreadsheet as grid functionality at the highest level. Can I use a LO component for grid functionality?
.
Gemini is AI, Artificial Intelligence, using imaginative capabilities of libraries that don’t exist. That’s not intelligent.
